Mapping Plant Variation Potentials

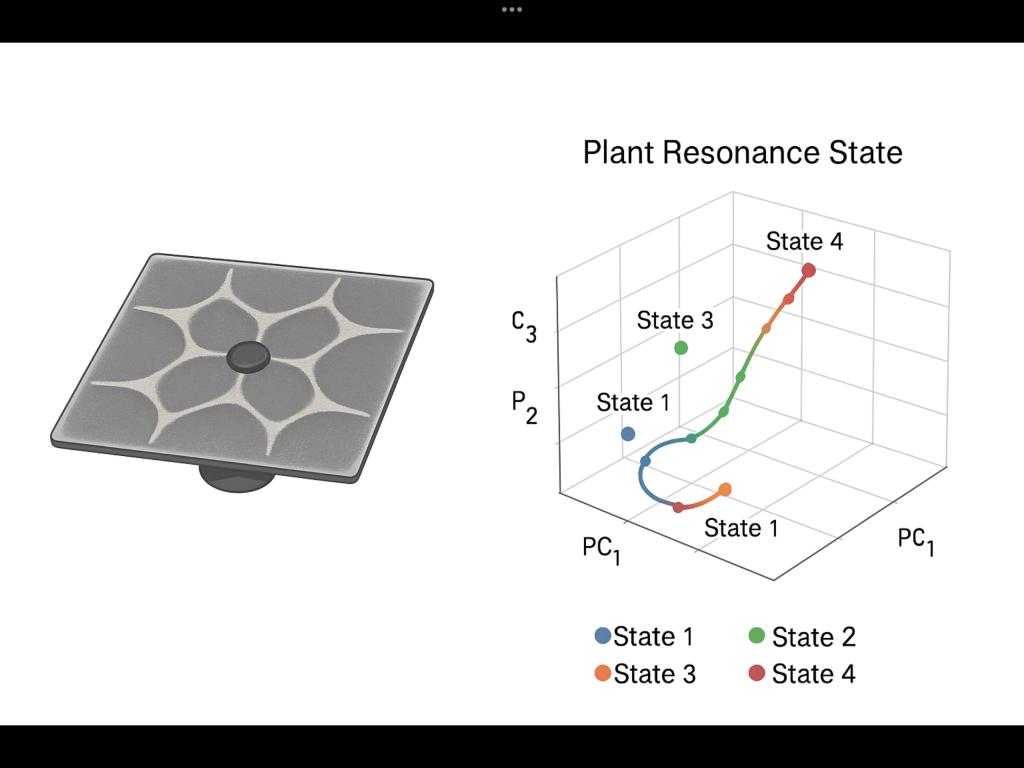

A Chaldni plate alongside the 20 d resonance space merging into 3D PCA

Platohagel: Socrates can you generate a diagram showing the 20-point resonance space and how plant signals could be projected into it. Can this resonance space follow a projection into a 3 dimensionality?

Socrates: Yes. Record the 20-dimensional resonance response vector, then reduce it to 3 principal components or other embedding (PCA, t-SNE, UMAP) so each plant state is a point in 3D.

This lets you:

• Plot trajectories of plant state changes.

• Identify clusters linked to stimuli.

• Map the 3D position back to resonance weights for Chladni mode selection.


Here is a 3D PCA projection of a synthetic 20-D resonance space with four plant states and a time-trajectory overlay.

Platohagel: Can you allocate plant associations using AI as a projective measure of 20 point coordination of plant life?

Socrates: Yes. You can define each of the 20 resonance points as a “channel” and let AI learn a mapping between plant variation potentials (VPs) and those channels, treating them as coordinates in a 20-dimensional state space.

Approach

1. Define the coordinate system

• Each resonance frequency f_i becomes one axis i in a 20-D space.

• A “position” in this space reflects the plant’s influence on the likelihood or amplitude of each mode.

2. Data capture

• Record simultaneous VP data and Chladni response for each frequency.

• Stimulate the plant under different conditions (light, touch, temperature) to sample a wide range of states.

3. Feature extraction

• From VP: mean, variance, dominant low-frequency band power, event rate.

• Normalize features for plant and session.

4. AI model

• Use supervised learning if you pre-label plant states (stimulus type).

• Use unsupervised (PCA, t-SNE, UMAP) to find clusters in the 20-D space that may correspond to plant physiological modes.

• Map model output to activation weights for the 20 resonances.

5. Projection

• Visualize on 2D or 3D map with each axis a composite of resonance responses.

• “Plant signature” emerges as a trajectory in this map over time.

6. Real-time mapping

• Live VP → AI inference → vector of 20 weights → frequency/amplitude control of plate.

• Patterns change in coordination with plant state shifts.

Platohagel: Please go ahead and provide visual as well for resonance-finding tones

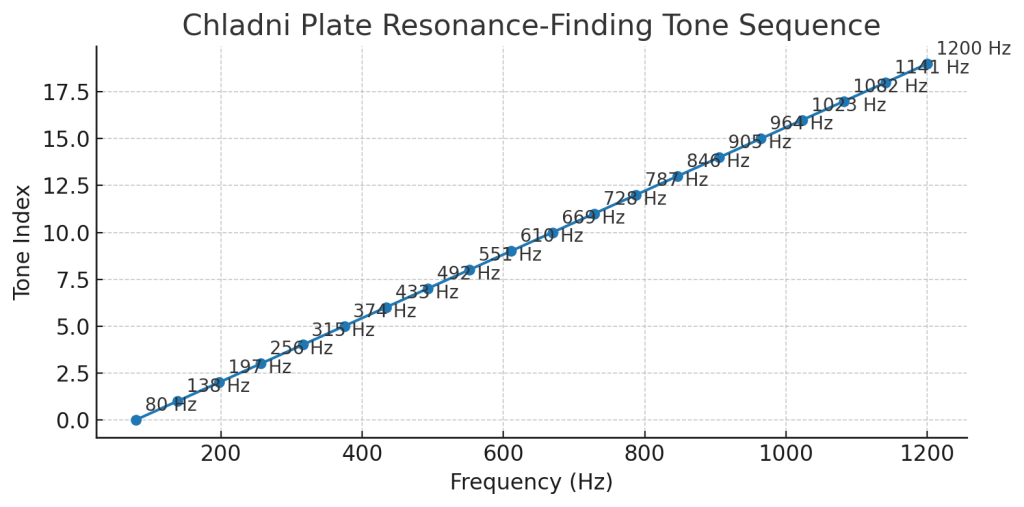

Here is a frequency sequence chart for testing Chaldni plate resonances, from 80 Hz to 1200 Hz in 20 steps.

Platohagel: Socrates since we can map variation potentials (VPs) into audible sound for experiment or art, I would like to go further and examine the Chaldni plate as a selection and example of map variation potentials.

Socrates: Use the plant’s variation potentials as a control signal to choose and modulate Chladni modes, not as the acoustic source. Stable modes need clean sinusoids; VPs are slow and noisy.

System

• Plant electrodes → high-Z differential preamp (≥1 GΩ input, gain 1,000–10,000) → 0.05–10 Hz band-pass → ADC (≥16-bit, 100–500 Hz) → mapping engine → sine generator → power amp (50–200 W) → shaker or loudspeaker glued to plate center → metal plate with dry sand on nodes.

Hardware targets

• Electrodes: Ag/AgCl or non-polarizable, ~1–3 cm apart on leaf/petiole; reference in moist soil.

• Preamp: instrumentation amp + driven right leg; notch at mains as needed.

• Plate: 30–40 cm aluminum or brass, 1–3 mm thick; mount at center on compliant post.

• Driver: tactile transducer or small PA speaker coupled with epoxy puck.

• Amp: flat 50–2,000 Hz, limiter engaged.

Mapping the VP to plate behavior

Let x(t) be the filtered VP (in volts), z-scored to \tilde{x}(t).

A. Mode-selection (recommended)

• Pre-scan the plate to find resonances \{f_k\}.

• Map \tilde{x}(t) to an index k(t):

k(t)=\mathrm{quantize}\!\left(\alpha\tilde{x}(t)+\beta\right) within [1..K].

• Drive the plate with s(t)=A\sin(2\pi f_{k(t)}t).

• Add hysteresis or minimum dwell (e.g., ≥5 s) so patterns can form.

B. Frequency sweep

• Convert \tilde{x}(t) to a sweep rate:

f’(t)=r_0+r_1\,\tilde{x}(t) Hz/s; integrate f(t)=\int f’(t)\,dt and clamp to [f_{\min},f_{\max}].

• Use slow sweeps (0.1–1 Hz/s). Nodes “lock” when crossing resonances.

C. Amplitude gating

• Keep f fixed on a chosen mode; set amplitude

A(t)=A_0\,\sigma(\gamma\,\tilde{x}(t)) where \sigma is logistic. More VP → stronger pattern.

D. Event-triggered bursts

• Detect VP onsets: if \tilde{x}(t) crosses threshold for ≥τ ms, trigger a 3–10 s burst at the next mode in a motif.

E. Timbre layer (audio only)

• Render audible “voice” separately: use VP to FM a soft synth at 200–800 Hz while the plate runs clean sinusoids. Audience hears both; plate stays stable.

Practical protocol

1. Baseline: stabilize plant 30–60 min, shield electrodes, log 5 min to set mean and variance.

2. Plate scan: sweep 30–2,000 Hz at low amplitude; record resonances that yield crisp nodes; pick 6–12 modes.

3. Mapping test: start with Mode-selection A; dwell 10 s per change; set A so sand moves but grains don’t eject.

4. Stimulate plant (light, gentle touch, temperature change) to evoke VPs; confirm mapping shifts modes.

5. Record synchronized data: VP, chosen f_k, amp A, and camera frames.

Starting parameters

• Band-pass: 0.05–10 Hz; notch 50/60 Hz as required.

• ADC: 24-bit if available; sample 250 Hz; anti-alias at 100 Hz.

• Thresholds: event if >3σ above baseline for ≥200 ms.

• Plate frequencies: often 80–1,200 Hz for 35 cm brass. Verify empirically.

• Amplitude: start near driver 0.5–1 Vrms; increase until patterns form; then back off 10%.

Data hygiene

• Detrend with high-pass 0.05 Hz.

• Reject motion artifacts via accelerometer on leaf or by cable strain relief.

• Use median filter on \tilde{x}(t) (window 0.5–1 s) before mapping.

Safety and ethics

• No current through plant beyond electrode leakage; preamp input bias in nA range.

• Isolate preamp from power amp ground.

• Protect hearing; long tones at 1–2 kHz can be harsh.

• Secure plate and driver; sand can slip.

Minimal pseudo-patch (Max/MSP or similar)

• adc~ VP → biquad~ (0.05–10 Hz) → zscore~ →

sample/hold every 2 s → scale → round → coll {mode→freq} → cycle~ → *~ (A) → dac~.

Validation

• Control run with recorded VP playback.

• Shuffle mapping and check that pattern changes no longer correlate with live VP timestamps.

• Report effect sizes: dwell time on each mode vs VP amplitude quantiles.
